Sunday, September 26, 2021
replace headliner and stuff

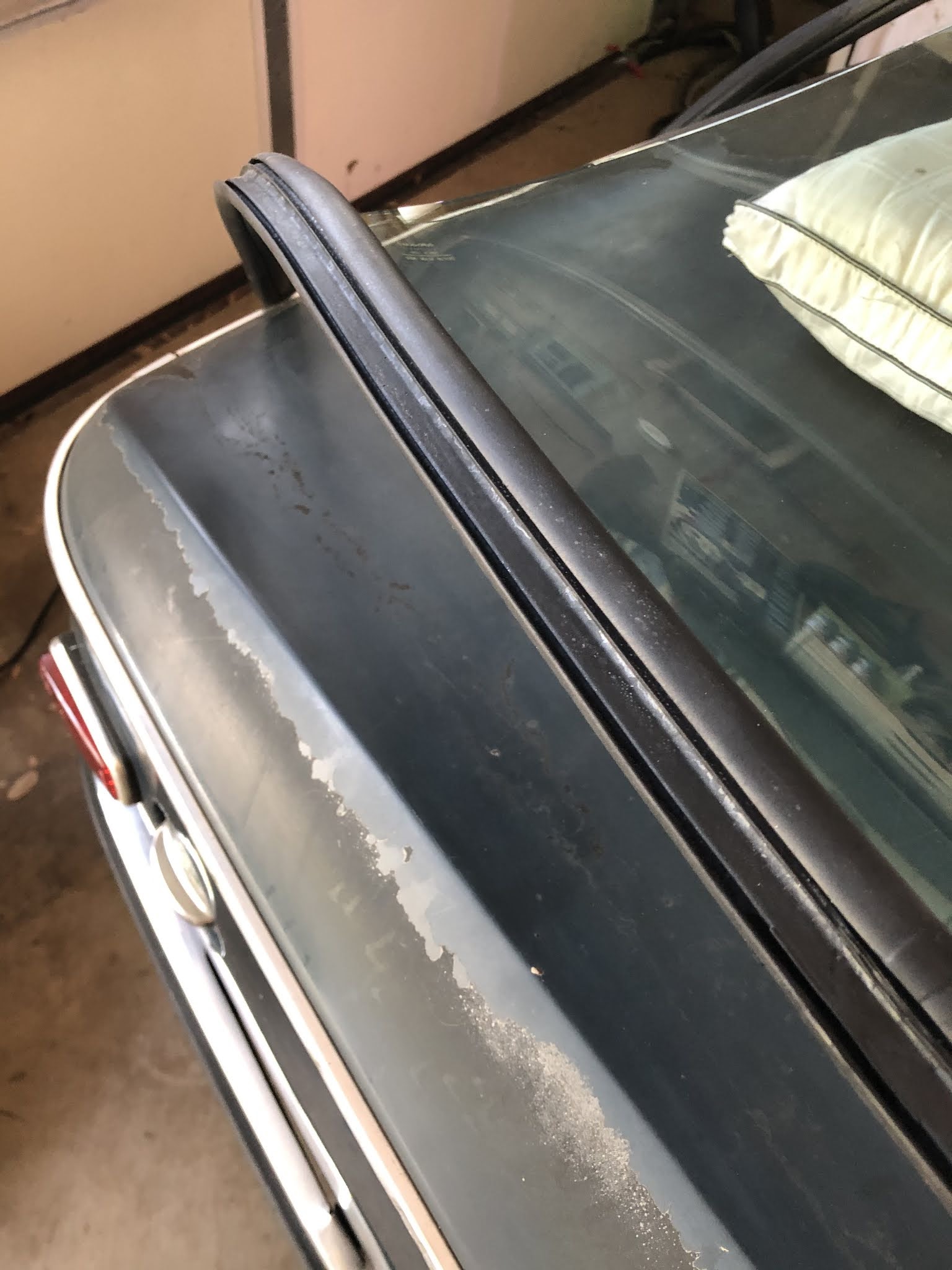

Remove glass to replace headliner. Fix some rust.
this spot has had it coming for a long time
feels better now
helper is growing fast
Wednesday, September 23, 2020
Friday, December 13, 2019
fun accident
The other week dead at a green light, groping about for power, I realized over 5 long seconds that my main contactor had dropped out!
I'd just turned On the air conditioning loading the 12V system down below 10 - ah ha, my 12V battery must not be making good connection! My DC-DC converter can not run so many accessories alone..
I rolled a window down and made a smooth recovery with minimal honking behind.
Back home I confirmed my theory and began to clean the 12V battery connection. With the 12V battery cable in my left hand furiously working it with a wire brush it slipped falling upon the high voltage battery. Zap!
Bitten by my minimalist exposed high voltage battery design!
Death toll:
1 fuse
1 motor controller logic board
12V to 5V USB converter
at least 1 cell monitoring board..
I'd just turned On the air conditioning loading the 12V system down below 10 - ah ha, my 12V battery must not be making good connection! My DC-DC converter can not run so many accessories alone..
I rolled a window down and made a smooth recovery with minimal honking behind.
Back home I confirmed my theory and began to clean the 12V battery connection. With the 12V battery cable in my left hand furiously working it with a wire brush it slipped falling upon the high voltage battery. Zap!
Bitten by my minimalist exposed high voltage battery design!
Death toll:
1 fuse
1 motor controller logic board
12V to 5V USB converter
at least 1 cell monitoring board..
The damage was repaired by Manzanita Micro and we should be on the road tomorrow. :)
Thursday, October 3, 2019
Wednesday, August 14, 2019
python
Here is my python script. Let me know if you have any ideas why it crashes when log_data() is called?
import time
import serial
import smtplib
from email.message import EmailMessage
def log_data(filename, line):
file_handle = open(filename, 'a+')
file_handle.write(line)
file_handle.close()
print('Hello World!')
ser = serial.Serial(
'/dev/ttyAMA0',
baudrate=57600,
parity=serial.PARITY_NONE,
stopbits=serial.STOPBITS_ONE,
bytesize=serial.EIGHTBITS)
time.sleep(.1)
try:
ser.write('H\r')
time.sleep(.25)
ser.write('2\r')
time.sleep(.25)
ser.write('6\r')
ser.reset_input_buffer()
kludge = 0
while True:
data = ser.read_until('\n', 120)
if kludge > 2 and len(data) > 12:
log_data('log.txt', data)
parse = data.split()
print(parse[0]
+ ' ' + parse[1]
+ ' Amps ' + parse[8]
+ ' ~ ' + parse[9]
+ ' Volts ' + str(int(parse[10]) * 9.0 / 5 + 32)
+ ' ~ ' + str(int(parse[11]) * 9.0 / 5 + 32)
+ ' degF')
kludge = kludge + 1
except BaseException:
# email logged data before quitting
print("Emailing data...")
textfile = 'log.txt'
with open(textfile) as fp:
# Create a text/plain message
msg = EmailMessage()
msg.set_content(fp.read())
msg['Subject'] = 'The contents of %s' % textfile
msg['From'] = 'chrisdarilek@gmail.com'
msg['To'] = 'chrisdarilek@gmail.com'
username = 'chrisdarilek@gmail.com'
# Send the message via our own SMTP server.
s = smtplib.SMTP('smtp.gmail.com:587')
s.starttls()
s.login(username, password)
s.send_message(msg)
s.quit()
print('Blow up the spacestation!')
finally:
ser.close()
pass
import time
import serial
import smtplib
from email.message import EmailMessage
def log_data(filename, line):
file_handle = open(filename, 'a+')
file_handle.write(line)
file_handle.close()
print('Hello World!')
ser = serial.Serial(
'/dev/ttyAMA0',
baudrate=57600,
parity=serial.PARITY_NONE,
stopbits=serial.STOPBITS_ONE,
bytesize=serial.EIGHTBITS)
time.sleep(.1)
try:
ser.write('H\r')
time.sleep(.25)
ser.write('2\r')
time.sleep(.25)
ser.write('6\r')
ser.reset_input_buffer()
kludge = 0
while True:
data = ser.read_until('\n', 120)
if kludge > 2 and len(data) > 12:
log_data('log.txt', data)
parse = data.split()
print(parse[0]
+ ' ' + parse[1]
+ ' Amps ' + parse[8]
+ ' ~ ' + parse[9]
+ ' Volts ' + str(int(parse[10]) * 9.0 / 5 + 32)
+ ' ~ ' + str(int(parse[11]) * 9.0 / 5 + 32)
+ ' degF')
kludge = kludge + 1
except BaseException:
# email logged data before quitting
print("Emailing data...")
textfile = 'log.txt'
with open(textfile) as fp:
# Create a text/plain message
msg = EmailMessage()
msg.set_content(fp.read())
msg['Subject'] = 'The contents of %s' % textfile
msg['From'] = 'chrisdarilek@gmail.com'
msg['To'] = 'chrisdarilek@gmail.com'
username = 'chrisdarilek@gmail.com'
# Send the message via our own SMTP server.
s = smtplib.SMTP('smtp.gmail.com:587')
s.starttls()
s.login(username, password)
s.send_message(msg)
s.quit()
print('Blow up the spacestation!')
finally:
ser.close()
pass
Tuesday, August 13, 2019
pi
I found a use for an old Raspberry Pi I had. I paired it with a small LCD display and wrote a Python script to poll the BMS for battery data.
I added WiFi to it and now I can SSH into it from my phone to monitor my charge without having to go outside.
My goal is to have the Pi write the data to a file and email it to me when it detects WiFi.
I added WiFi to it and now I can SSH into it from my phone to monitor my charge without having to go outside.
My goal is to have the Pi write the data to a file and email it to me when it detects WiFi.
